SHOT TAMBLAST

SPECIAL FEATURES:
This machine is the tumbler type shot blast. It is used for the cleaning and removing sand, scale, burs from small casting of common casting iron, casting steel, non-metaric casting, forging products, etc; shot peening and even for deburring plastic products including synthetic rubber. This machine is constructed so simple, easy operated and small installation space, therefore we can get various feature as high cleaning ability, superiority of cleaned surface, reduction of cleaning cast by half.
SPECIFICATION:
Model No.
YC-8
Impeller (mm)
360x62x 1set
Required Impeller motor (mm)
7.5 x 4P
Treating Capacity per month (Tons)
240-300
Capacity (m3)
0.25
Weight (kg)
300
Length (mm)
750
Max. Unit weight (kg)
30
Size of revolution drum (mm)
1000 X 800L
Required motor for drum (kw)
0.75
Dust Collector (kw)
TDC-1 (0.75x2P)

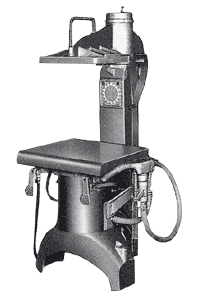

JOLT SQUEEZE MOULDING MACHINE

SPECIAL FEATURES:
Most popular small type moulding machine. Compressed air actuates the jolt squeeze action. Suitably applied to match-plate moulding for large quantnity production of small casting, with the flask assembled with match-plate pattern between the cope and drag.

SPECIFICATION:
Model No.
F-1A
F-2
Size of Table (m/m)
450x 520
485 x 580
Cap. of Jolt (kg)
170
300
Squeeze Pressure (kg)
2500
4300





JOLT SQUEEZE MOULDING MACHINE (Automatic)

SPECIAL FEATURES:
Most popular small type moulding machine. Compressed air actuates the jolt squeeze action. Suitably applied to match-plate moulding for large quantnity production of small casting, with the flask assembled with match-plate pattern between the cope and drag.

SPECIFICATION:
Model No.
F-1A
F-2
Size of Table (m/m)
450x 520
485 x 580
Cap. of Jolt (kg)
170
300
Squeeze Pressure (kg)
2500
4300






JOLT SQUEEZE STRIPPER MOULDING MACHINE (Automatic)

SPECIAL FEATURES:
Most widely used moderated-type moulding machine. Jolt squeezing and stripping are operated pneumatically and mechanically. Most effieient, labor and time saving moulder. The machine use automatic power control.

SPECIFICATION:
Model
FD-1
FD-2
FD-3
FD-4
Size of Table (m/m)
475x 500
575 x 650
650x700
800x950
Cap. of Jolt (kg)
170
300
500
1000
Squeeze Pressure (kg)
2500
4300
6300
9600
Draw Stroke (m/m)
120
160
230
300
